 | 18650, 21700,4680 Battery Inspection Machine Suitable for the detection and packaging of cylindrical lithium batteries such as 18650, 21700 and 4680. The equipment is mainly used for automatic feeding of cylindrical lithium batteries, coding, electrostatic dust removal, appearance detection (positive electrode，negative electrode, the side shell), battery scanning, automatic packaging, CCD review, carton labeling, bar code binding, automatic packaging and other processes. |
Automatic box packaging of Cylindrical lithium battery
Realize on-line reading, detection and packaging of cylindrical lithium battery.
AOI detection of cylindrical lithium battery
The self-developed deep learning-based appearance defect detection software is mainly applicable to the surface of cylindrical lithium batteries, such as scratches, nicks, foreign material, pollution, corrosion and other defects detection, to ensure accurate detection of defects.
Open circuit voltage OCV detection of cylindrical lithium battery
Multi-servo flexible structure, probe self-inspection calibration, to achieve a variety of different specifications of cylindrical lithium battery detection.

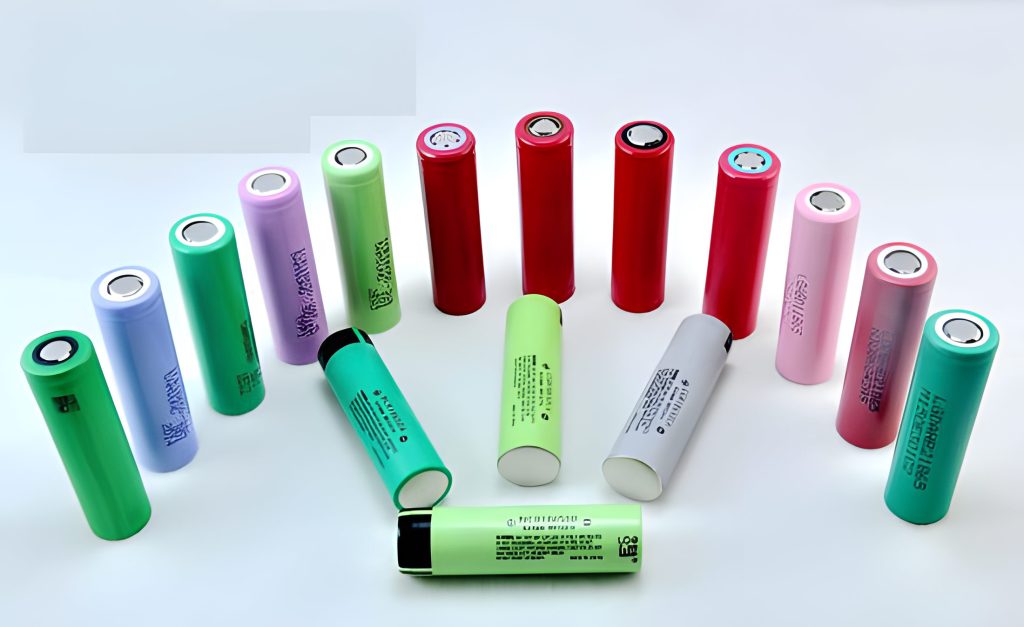

Workpiece / Specimens
Multiple Applications · Customized Solution Portfolio.
Reference image of defects
Basic specification
| Inspection items | Defects such as indentation, nicks, foreign matter, contamination, corrosion and so on in the polar and cylindrical surfaces of lithium batteries. | ||
| Workpiece size | Ø 15～30mm, H50~80mm | Camera quantity | 8 set |
| Optical resolution | 0.02mm | Accuracy | 0.1mm |
| Cycle inspection | 200ppm | Power supply | AC, 1 Phrase, 220V; 50/60Hz |
| Power consumption | 14kW | Air compression | 0.5MPa～0.6MPa |
| Dimensions / Weight | 12000(L)*2500(W)*2000(H)mm / 5000Kg | ||
| Operation conditions | Temperature: 5℃-30℃；Humidity: <70% | ||
| Features | 1. Display real-time detecting status and alarm the quantity of NG products. | ||
