DELOLUX 50 UV Lamp - spot curing lamp system

DELOLUX 50 UV Lamp - spot curing lamp system
DELOLUX 50 UV Lamp - spot curing lamp system
DELOLUX 50 UV Lamp - spot curing lamp system

DELOLUX 50 UV Lamp - spot curing lamp system

lien_he

  • DELOLUX 50 spot lamp is a type of UV lamp used to irradiate small or very small areas of glue such as chip on board, camera module, mini speakers on smartphones, ...

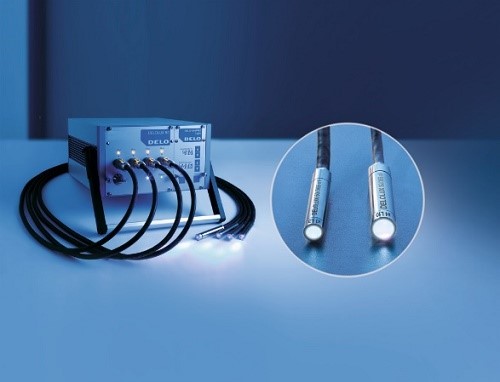

  • These lights are controlled by DELOLUX pilots S4i and S4T. These are two new models that are improved by DELO, with higher irradiation capacity and more compact size.
Add product to cart

 Introducing DELOLUX 50:

  • DELOLUX 50 spot lamp is a type of UV lamp used to irradiate small or very small areas of glue such as chip on board, camera module, mini speakers on smartphones, ...
  • These lights are controlled by DELOLUX pilots S4i and S4T. These are two new models that are improved by DELO, with higher irradiation capacity and more compact size.
  • DELOLUX 50 meets the diverse needs of customers in terms of lighting areas: point-shaped projection areas, wire-sized thin projection areas... with many different sizes.

Application:

  • Common used to cure (dry) point glue joints, small area.
  • Compatible with all DELO UV adhesives such as PHOTOBOND, KATIOBOND, and DUALBOND.
  • Suitable for both manual use and automatic lines.
  • Used in adhesive applications for electronic components, glass bonding,...



Specifications:

  • There are basically 2 types: DELOLUX 50 (cylinder shape) and DELOLUX 502 (flat form).
  • These LUX 50 lamps can all be connected from 1~4 units running at the same time to the S4i or S4T pilot controller (always a maximum of 4 lamp head ports can be connected).
  • The cylinder LUX 50 lamp head with different lens sizes, will give different irradiation areas. Details of these lenses are given in the table below.
  • For the LUX 502 series, the lamp head has a flat shape, there are always only 2 fixed LEDs per 1 lamp head. The irradiation area is also fixed at 3 x 8 mm.
  • The LUX 50 series of lamp heads are also divided into 2 more subtypes, LUX 50x1 (mean only 1 LED bulb per 1 lamp) and LUX 50x4 (with 4 LED bulbs per 1 lamp head).

Lamp head

Lens

Irradiation area

Working Distance (mm)

Irradiation intensity (mW/cm 2)

DELOLUX 50x1

L1

Ø 0.6 ~ 1.1 mm

3~5

12000

L2

Ø 1.1 ~ 2.0 mm

6~14

6000

L3

Ø 2.0 ~ 3.2 mm

8~14

2500

L6

Ø 3.2 ~ 6.0 mm

10~30

1000

DELOLUX 50x4

L5

Ø 5.0 mm

7~8

2500

L10

Ø 10.0 mm

9~15

1500

DELOLUX 502

-

3 mm x 8 mm

5~8

1500



Contact HUST Vietnam for more detailed information.

HUST Vietnam is proud to be the exclusive distributor of glue, dispensing equipment, UV glue curing lamps, and technology transfer from DELO in Vietnam!
